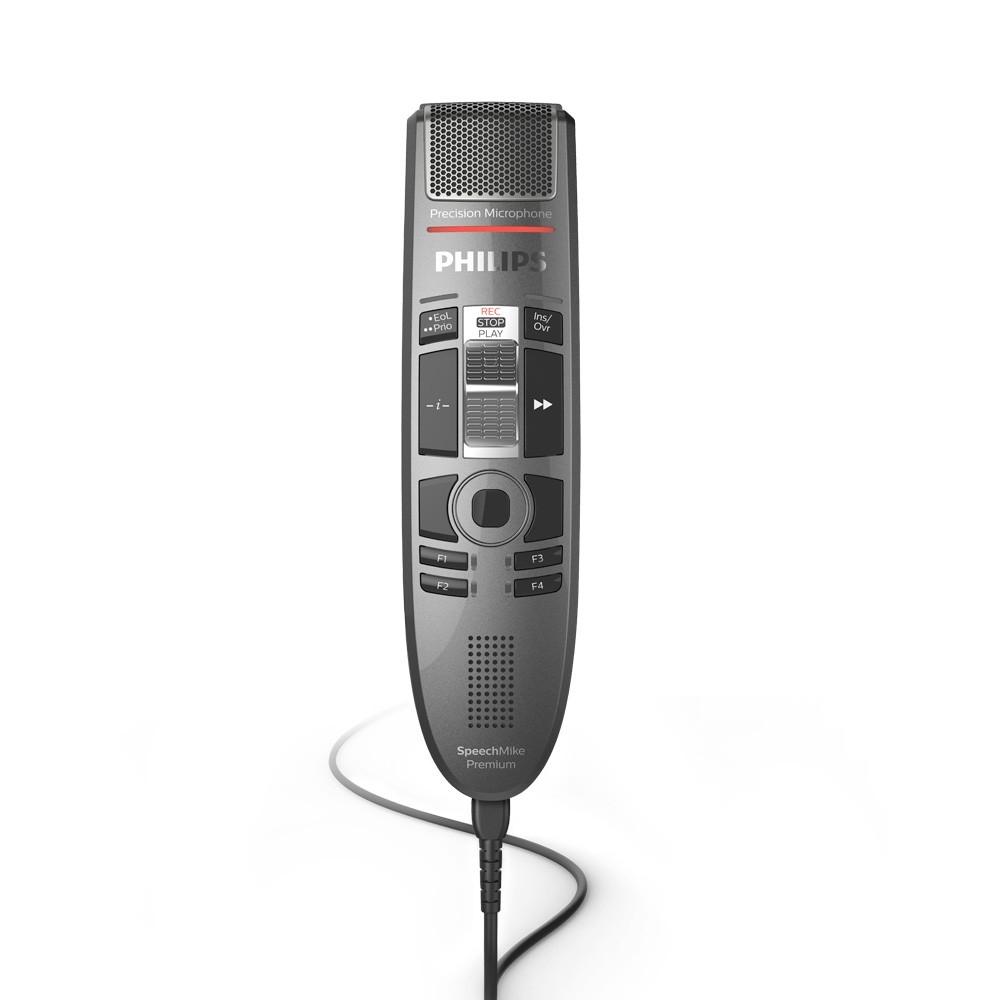

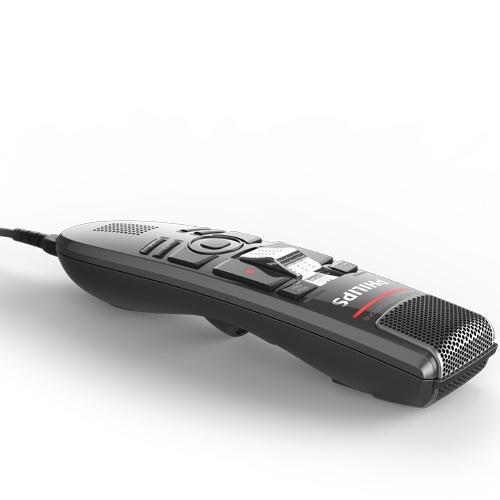

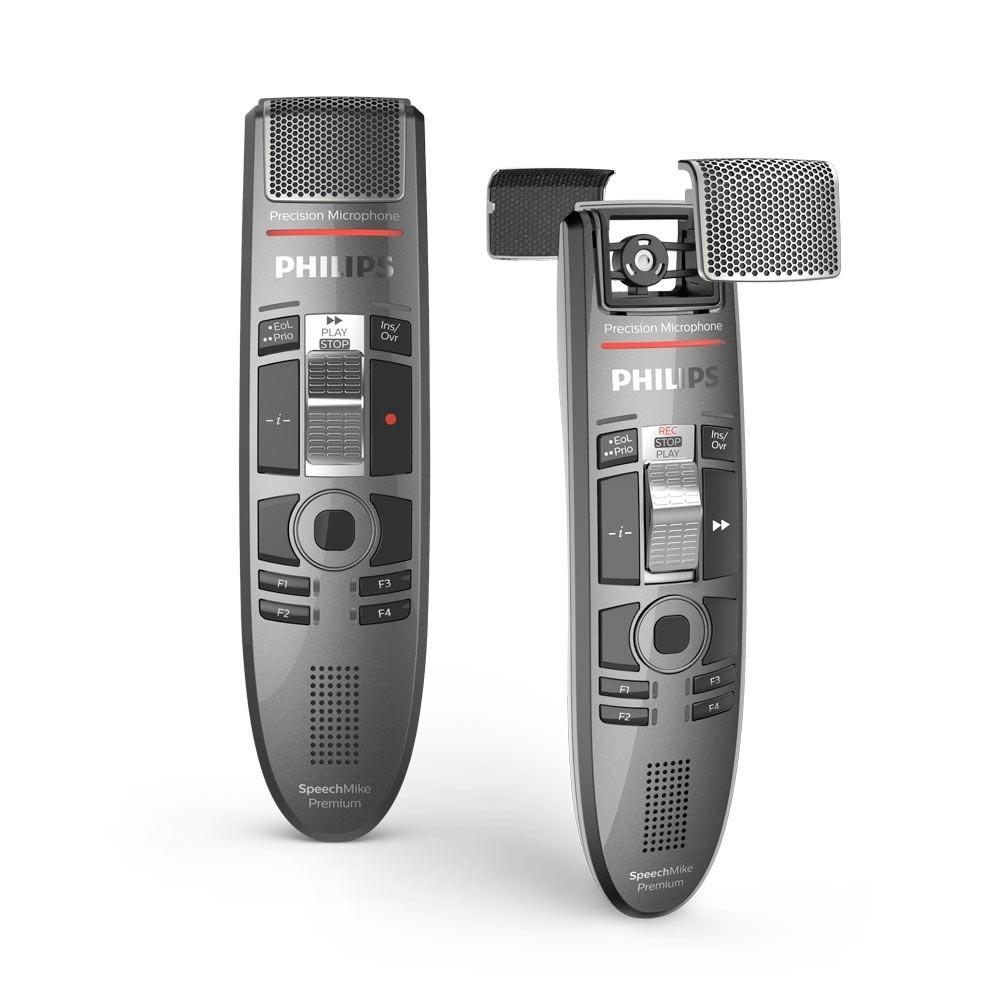

Philips SMP3710 SpeechMike Premium Touch : Slide Control Dictation Microphone
Product Highlight
-
Touch sensor
for integrated mouse function -
Decoupled studio-quality microphone
for precise recording -
Integrated pop filter
for perfect recording quality -
Antimicrobial housing and buttons
for hygienic working
$526.90
Philips SMP3700 SpeechMike Premium USB
Key Features:
- Decoupled studio-quality microphone for precise recording
- Microphone grille with optimized structure for crystal clear sound
- Integrated pop filter for perfect recording quality
- Large speaker area for premium playback
Crafted for comfort
- Ergonomically shaped for perfect fit in the hand
- Wear-free slide switch or push buttons for comfortable operation
- Integrated motion sensor mutes microphone when not in use
- Touch sensor for integrated mouse function
Designed for detail
- Antimicrobial housing and buttons for hygienic working
- Barcode scanner for streamlined documentation
- Freely configurable function keys for a personalized workflow
- Smart, backwards compatible firmware for extra flexibility
Decoupled studio-quality microphone for precise recording
The free-floating microphone is decoupled from the device’s housing, which guarantees that almost no background, touch, click, air or structure-borne noise is recorded. This technique is derived from studio microphones to make sure there are no sound distortions whatsoever and to guarantee outstanding speech recognition results.
Microphone grille with optimized structure for crystal clear sound
The metal grille comes with specially designed hexagonal openings which allow three times more sound to reach the microphone than its predecessor, engineered to provide crystal clear recordings.
Integrated pop filter for perfect recording quality
Fleece inserted above and below the microphone capsule filters out sound distortions such as pop and hiss noise, guaranteeing perfect results even if dictating closely into the microphone.
Large speaker area for premium playback
The SpeechMike Premium Touch is equipped with an extra-large speaker, enabling it to not only record but also play back recordings in clear and crisp quality.
Ergonomically shaped for perfect fit in the hand
The device is designed to fit perfectly into the hand and reduce unintentional pressing of buttons. The trigger and the ‘command’ button on the back of the device are engineered to be in easy reach for the fingers.

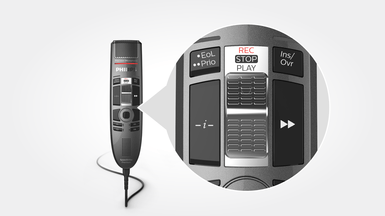

Wear-free slide switch or push buttons for comfortable operation
The SpeechMike Premium Touch comes with a slide-switch or a push-button operation. The slide switch is wear-free and ergonomically shaped with a softly ribbed surface for smooth tactile feedback and comfortable and intuitive utilization. In addition, our engineers implemented a millionfold proven contactless slider detection, making it completely wear-free for an extra-long lifetime.
Integrated motion sensor mutes microphone when not in use
Being on the cutting edge of technology, the SpeechMike Premium Touch comes with an integrated motion sensor, making it the first stationary dictation device that can be controlled by the movement of your hand. It detects when it’s put on the table, mutes the microphone, and once it is being picked up again it unmutes the microphone. In addition to that, custom events can be programmed, e.g., to pause and to continue the recording.
Touch sensor for integrated mouse function
The device comes with a touch sensor. This allows the user to easily control and navigate within applications while recording, without having to switch between the mouse and microphone.
Antimicrobial housing and buttons for hygienic working
The housing and the buttons of the SpeechMike Premium Touch are made of antimicrobial synthetics that work against a wide range of different microorganisms such as bacteria (e.g. pneumococcal bacilli and multiresistant microorganisms such as MRSA), viruses (e.g. HIV, influenza, etc.), fungi (e.g. Aspergillus niger), or algae. The polished, high quality pearl metal surface also makes the device non-sensitive to touch noises and fingerprints.
Freely configurable function keys for a personalized workflow
The SpeechMike Premium Touch has freely configurable keys which are especially useful for programming speech recognition commands. The device can be personalized for any user and application.
Smart, backwards compatible firmware for extra flexibility
Customers can upgrade from their previous SpeechMike model without installing additional software. For integrators, this means no changes need to be implemented and the existing SDK can be used. The SpeechMike Premium Touch is compatible with Mac and Windows operating systems, as well as virtual environments such as Citrix, VM Ware and Hyper-V. It can be configured using SpeechControl, the convenient Philips hardware management tool.
SPECIFICATIONS
Connectivity
- USB:
- USB 2.0, type A (compatible with USB 3.0)
Audio recording
- Microphone type:
- electret condenser microphone
- Microphone capsule:
- 10 mm
- Characteristic:
- uni-directional
- Frequency response:
- 200 – 12 000 Hz
- Sensitivity:
- -37 dBV
- Signal-to-noise ratio:
- > 70 dBA
Sound
- Speaker type:
- built-in round, dynamic speaker
- Speaker diameter:
- 30 mm
- Acoustic frequency response:
- 300 – 7500 Hz
- Speaker output power:
- > 200 mW
System requirements for Philips SpeechControl software
- Processor:
- Intel dual core or equivalent AMD processor, 1 GHz or faster processor
- RAM:
- 2 GB (32 bit)/4 GB (64 bit)
- Hard-disk space:
- 30 MB for SpeechControl software, 4.5 GB for Microsoft .NET Framework
- Operating system:
- Windows 10 (64 bit), Windows 8.1/7 (32/64 bit), Windows Server 2012 (64 bit), Windows Server 2008 R2 (32/64 bit), macOS 10.13/10.12
- Graphics:
- DirectX-compliant graphics card with hardware acceleration recommended
- Sound:
- Windows-compatible sound device
- Free USB port
- Supported speech recognition software:
- Nuance Dragon Professional 12.5/13/14/15 Individual/Group, Nuance Dragon Legal 12.5/13/14/15, Dragon Medical Practice Edition 2/3, Nuance Dragon SDK Client Edition 14, M*Modal Fluency Direct 8.0 and above
Green specifications
- Compliant to 2011/65/EU (RoHS)
- Lead-free soldered product
Operation conditions
- Temperature:
- 5° – 45° C / 41° – 113° F
- Humidity:
- 10 % – 90 %
Dimensions
- Product dimensions (W × D × H):
- 45 × 175 × 32 mm / 1.8 × 6.9 × 1.25 in
- Weight:
- 200g /7 oz (including cable)
- Cable length:
- 2.5 m / 8.2 ft
Design and finishing
- Material:
- housing made of high-class polymers with antimicrobial additive
- Color:
- dark grey pearl metallic,
Package contents
- SpeechMike Premium Touch Dictation Microphone
- USB cable (connected to device)
- Microphone holder
- Quick start guide
